HiddenLayer Azure Sentinel Integration Guide

Overview

This guide provides step-by-step instructions for integrating HiddenLayer with Microsoft Sentinel. Runtime detections will be sent from the HiddenLayer Console to an Azure Log Analytics Workspace for ingestion by Sentinel.

Architecture

Prerequisites

• Azure subscription with the following permissions:
  • Azure Entra ID: Create and manage app registrations, create client secrets
  • Azure Monitor: Create and manage Data Collection Endpoints (DCE)
  • Azure Monitor: Create and manage Data Collection Rules (DCR)
  • Log Analytics Workspace: Create and manage custom tables
  • Access Control (IAM): Grant role assignments on Data Collection Rules
• Log Analytics Workspace
• Azure Sentinel
• HiddenLayer Console admin access

Setup Steps

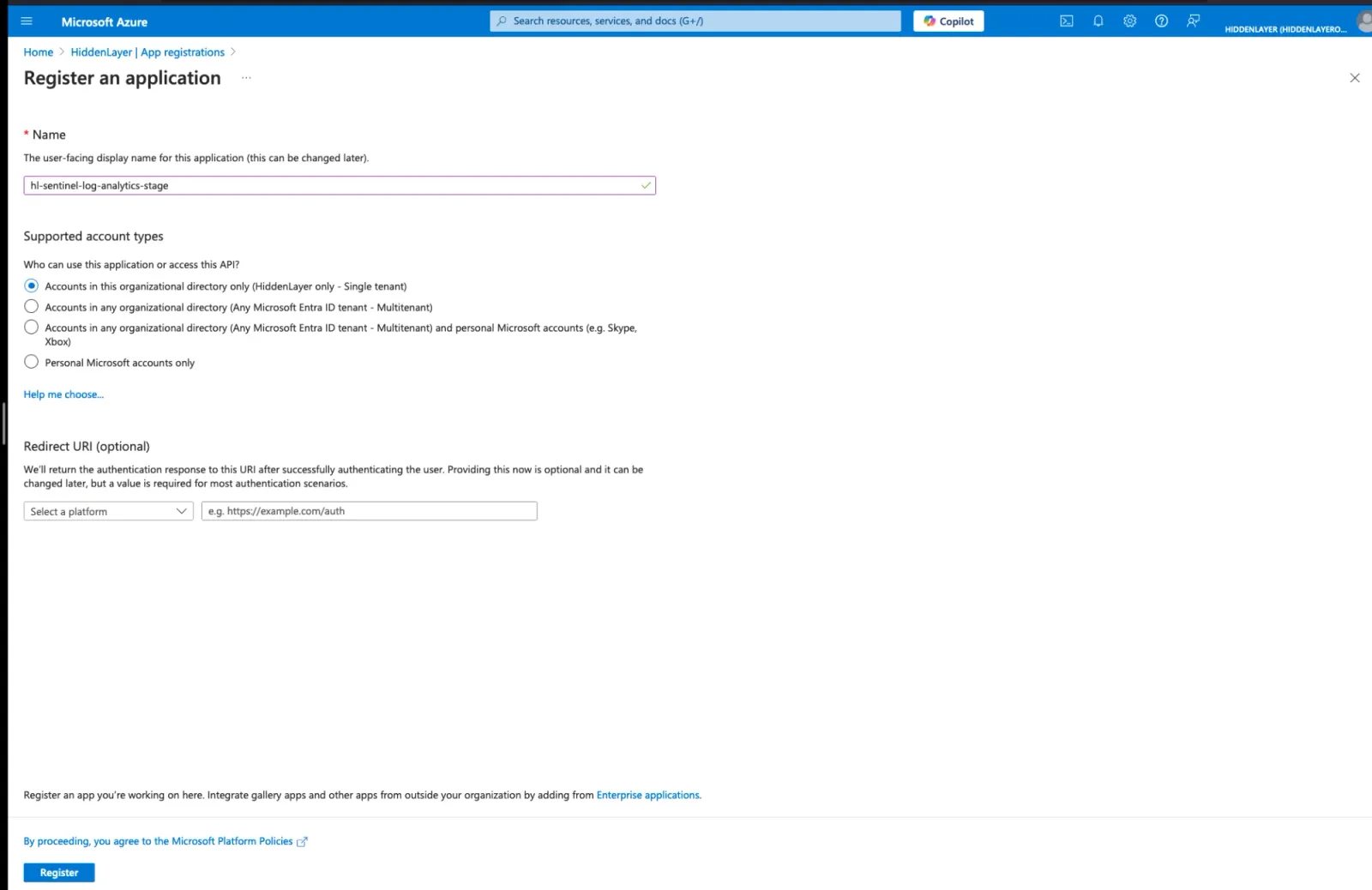

Step 1: Register Application in Azure Entra ID

1. Navigate to Azure Portal → Microsoft Entra ID → App registrations

2. Click New registration

3. Enter a name for the application (e.g., hl-sentinel-log-analytics-stage)

4. Select Accounts in this organizational directory only (Single tenant)

5. Click Register

6. Save the following values:

   • Application (client) ID - You’ll need this later
   • Directory (tenant) ID - You’ll need this later



Step 2: Create Client Secret

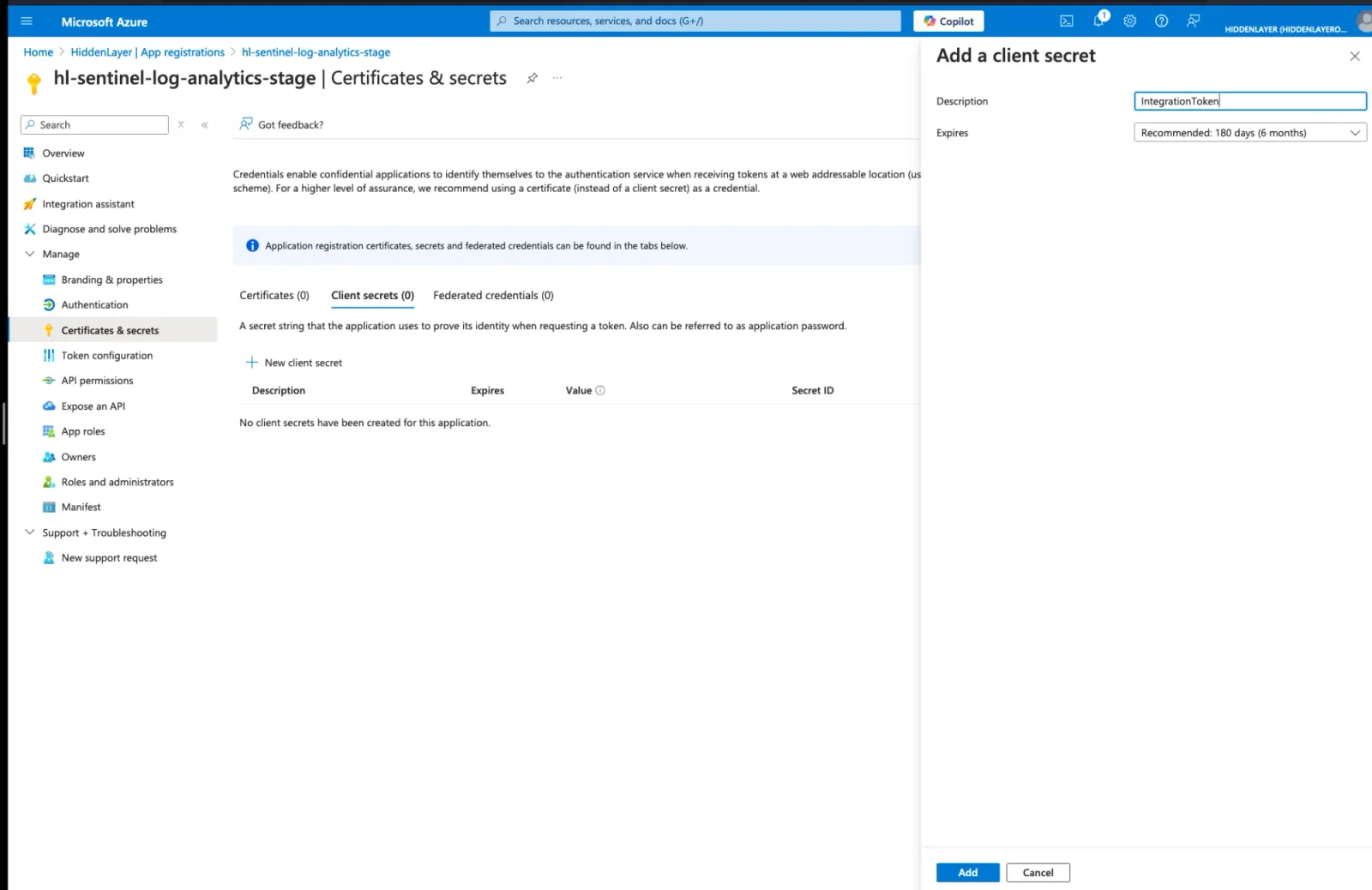

1. In your app registration, navigate to Certificates & secrets

2. Click New client secret

3. Enter a description (e.g., IntegrationToken) and set expiration (recommended: 180 days or 6 months)



4. Click Add

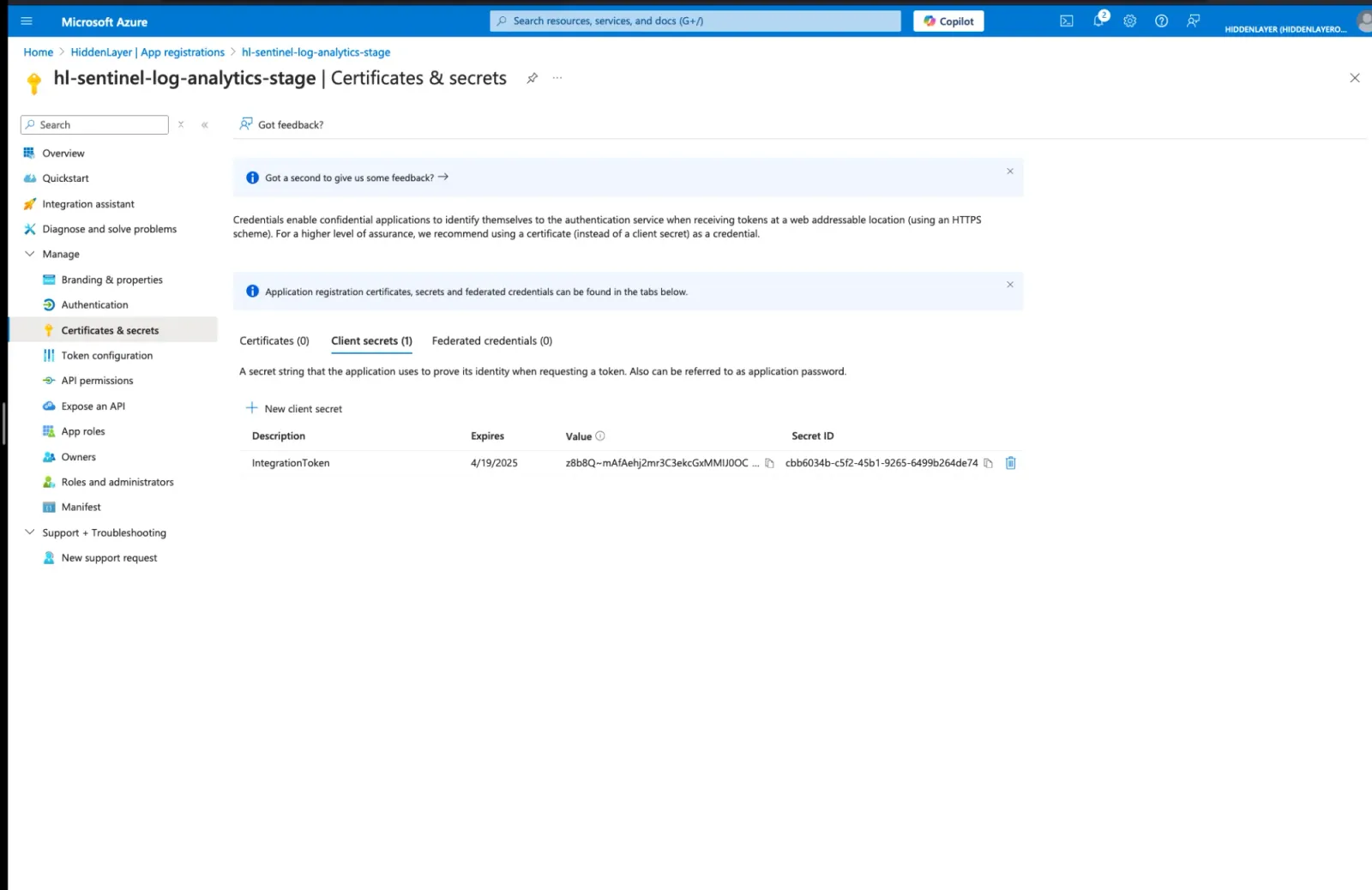

5. IMMEDIATELY COPY THE SECRET VALUE - You cannot view it again after leaving this page



6. Save this value securely - You’ll need it for HiddenLayer configuration

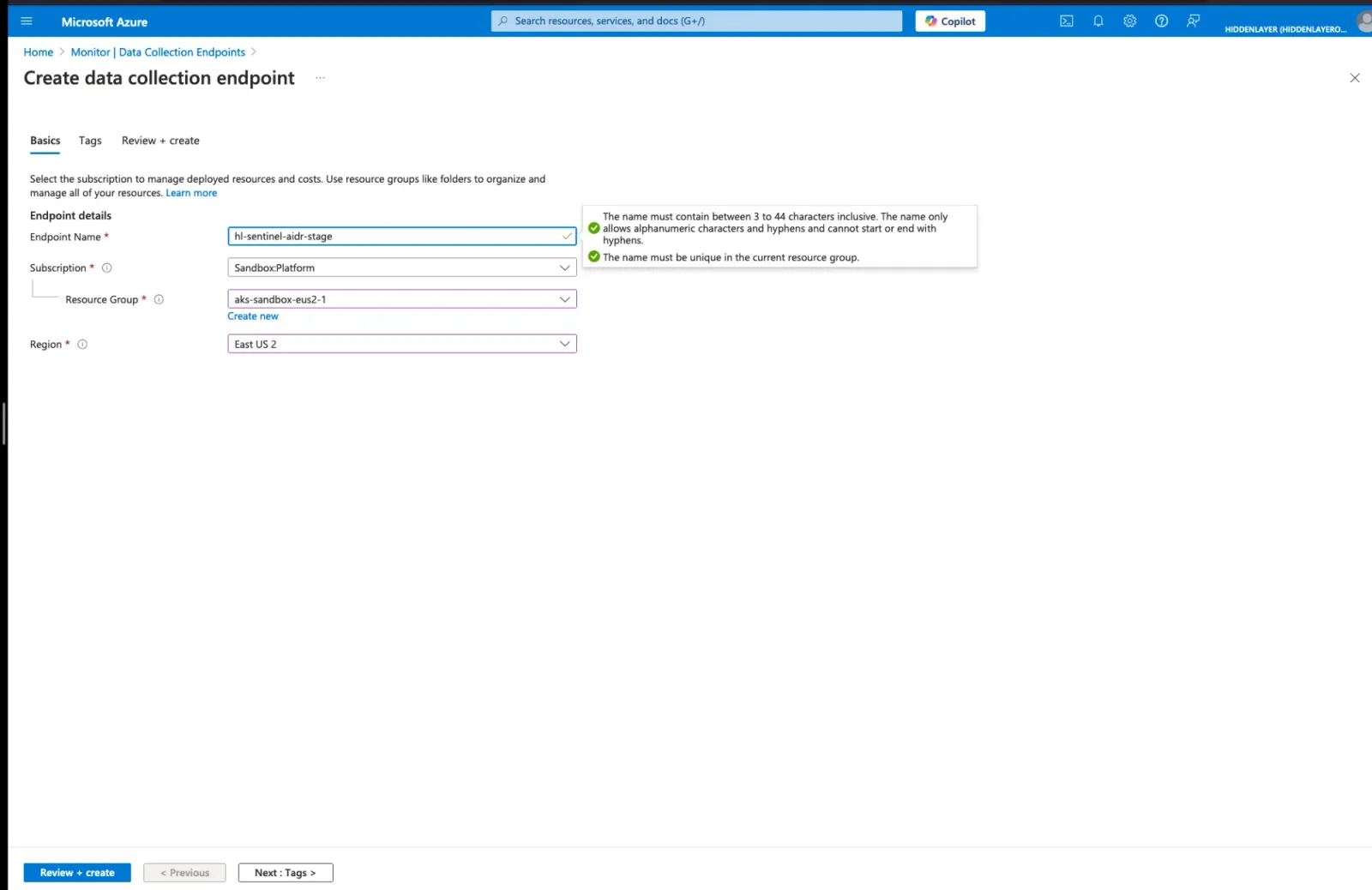

Step 3: Create Data Collection Endpoint

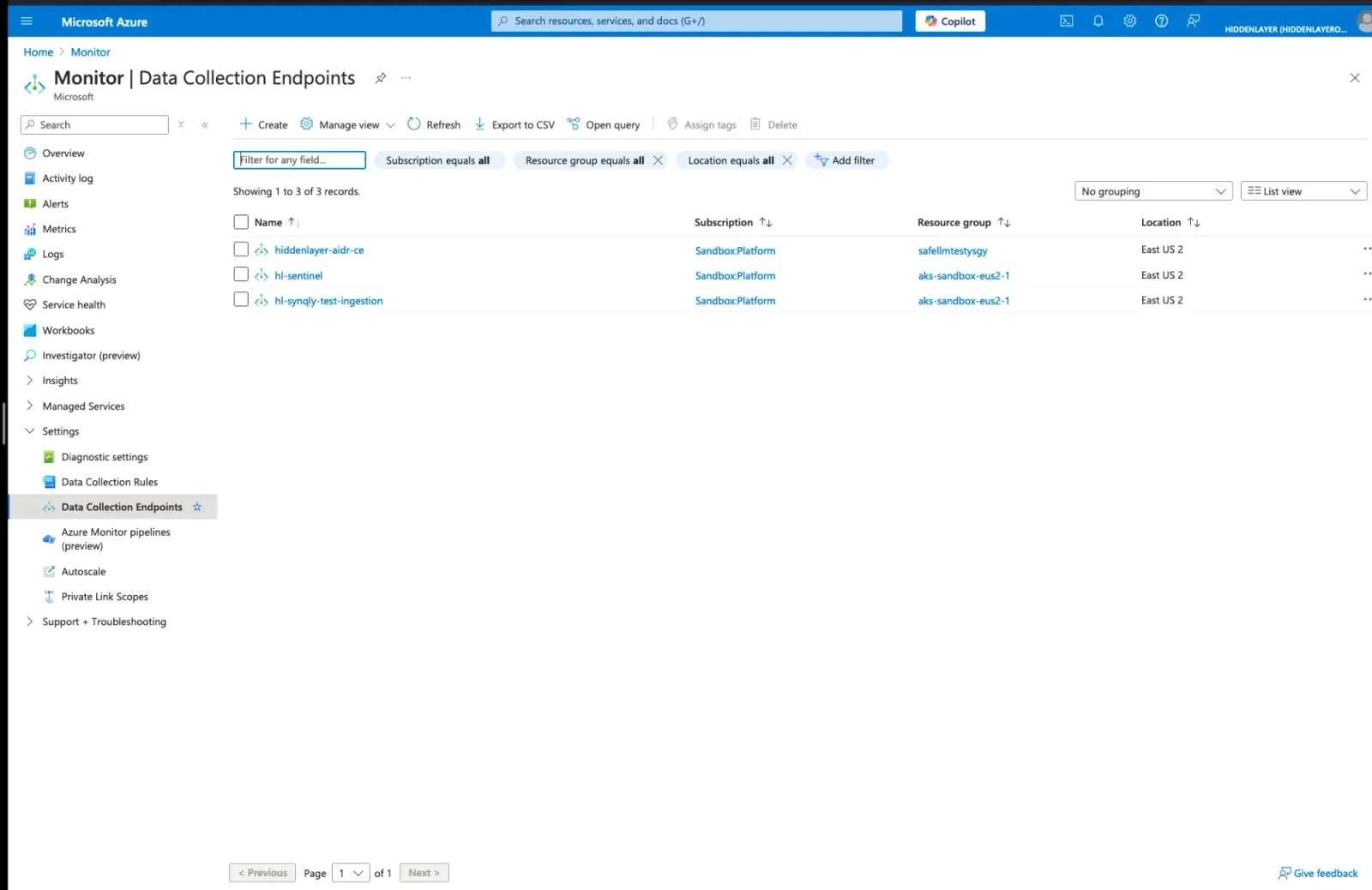

1. Navigate to Azure Portal → Monitor → Data Collection Endpoints



2. Click Create

3. Configure the endpoint:

   • Name: hl-sentinel-aidr-<environment> (e.g., hl-sentinel-aidr-stage)
   • Subscription: Select your subscription
   • Resource Group: Select or create a resource group
   • Region: Choose the region closest to your HiddenLayer deployment



4. Click Review + create → Create

5. Once created, select the endpoint and click JSON View

6. Copy the dataCollectionEndpointId - It looks like:

   /subscriptions/<subscription-id>/resourceGroups/<rg-name>/providers/Microsoft.Insights/dataCollectionEndpoints/<endpoint-name>

7. Copy the logsIngestion URL - It looks like:

   https://<endpoint-name>-<hash>.<region>.ingest.monitor.azure.com

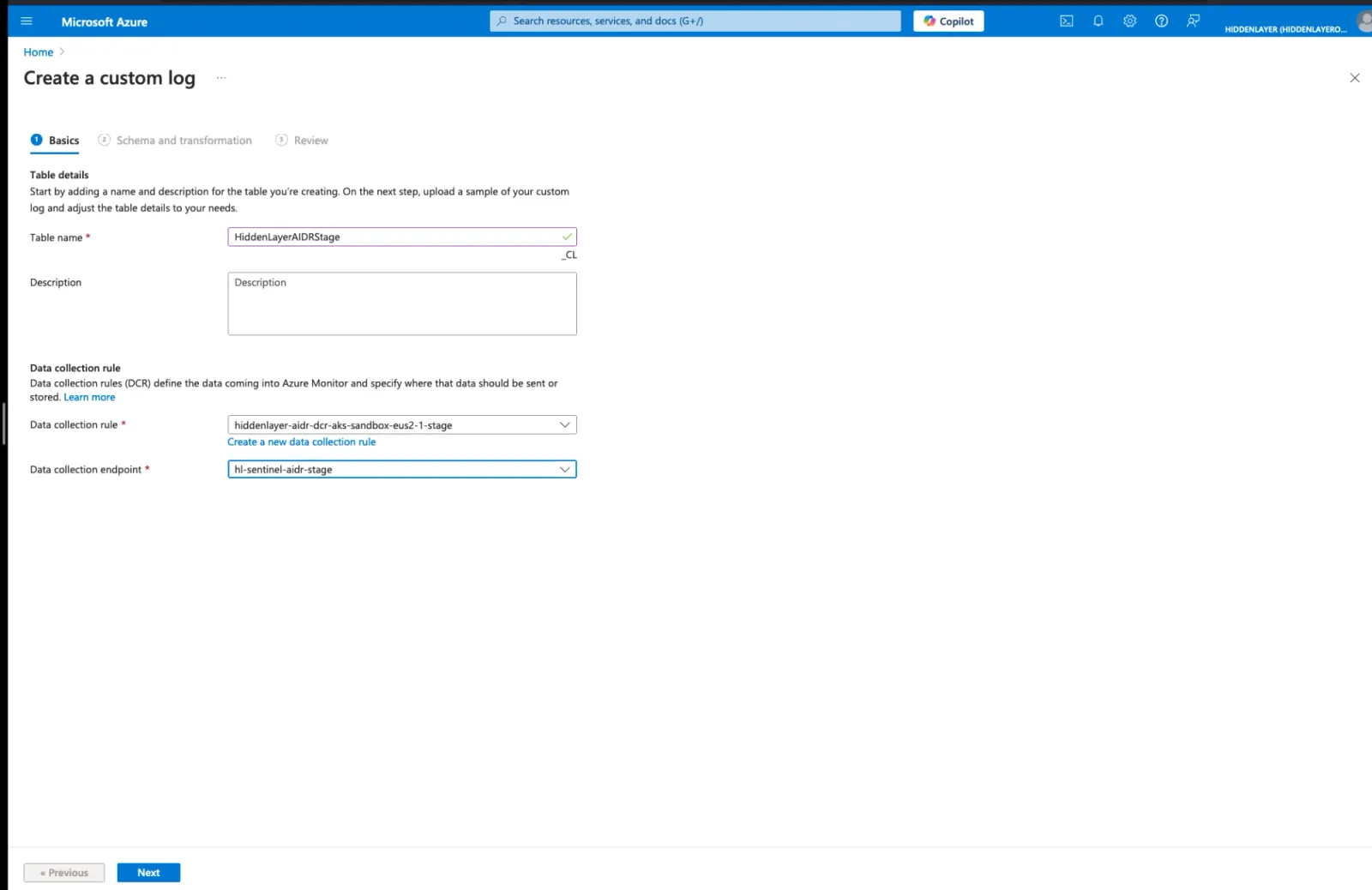

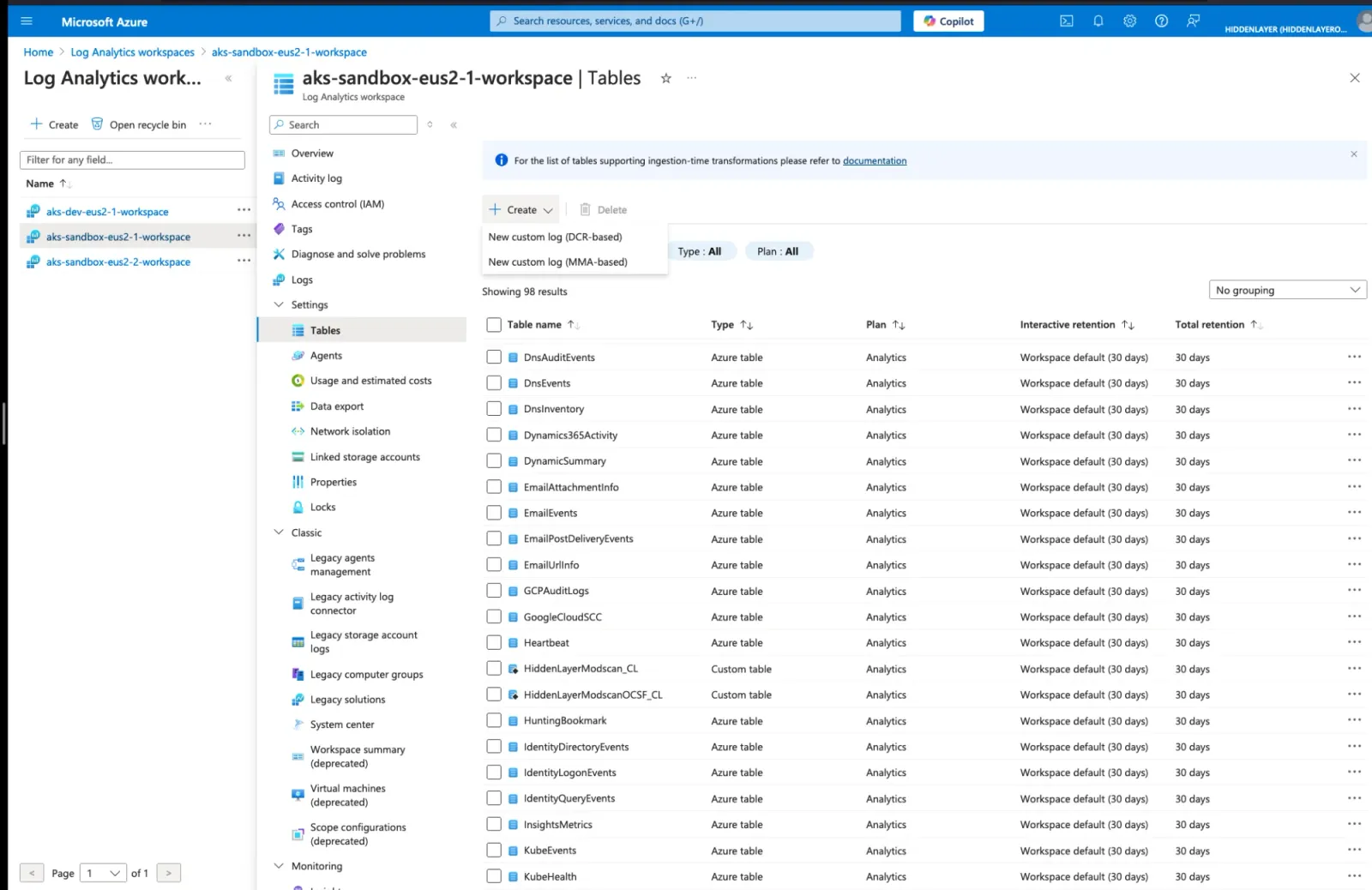

Step 4: Create Custom Log Analytics Table

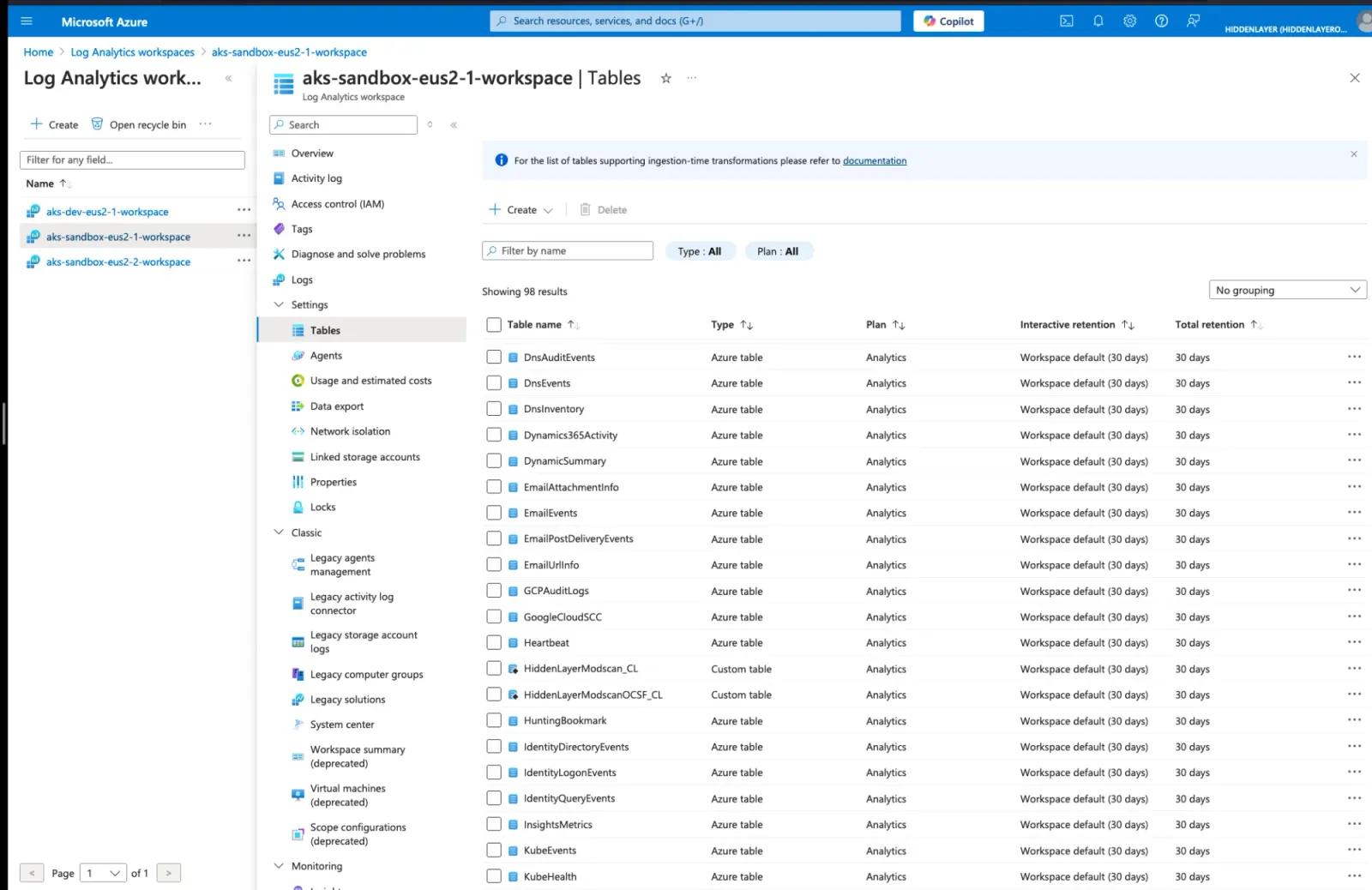

1. Navigate to Azure Portal → Log Analytics workspaces

2. Select your workspace (where Sentinel is enabled)

3. Navigate to Settings → Tables



4. Click Create → New custom log (DCR-based)



5. Configure the custom log:

   • Table name: HiddenLayerAIDRStage (without _CL suffix)
   • Data collection endpoint: Select the endpoint created in Step 3
   • Data collection rule: Create new or select existing



6. Click Next

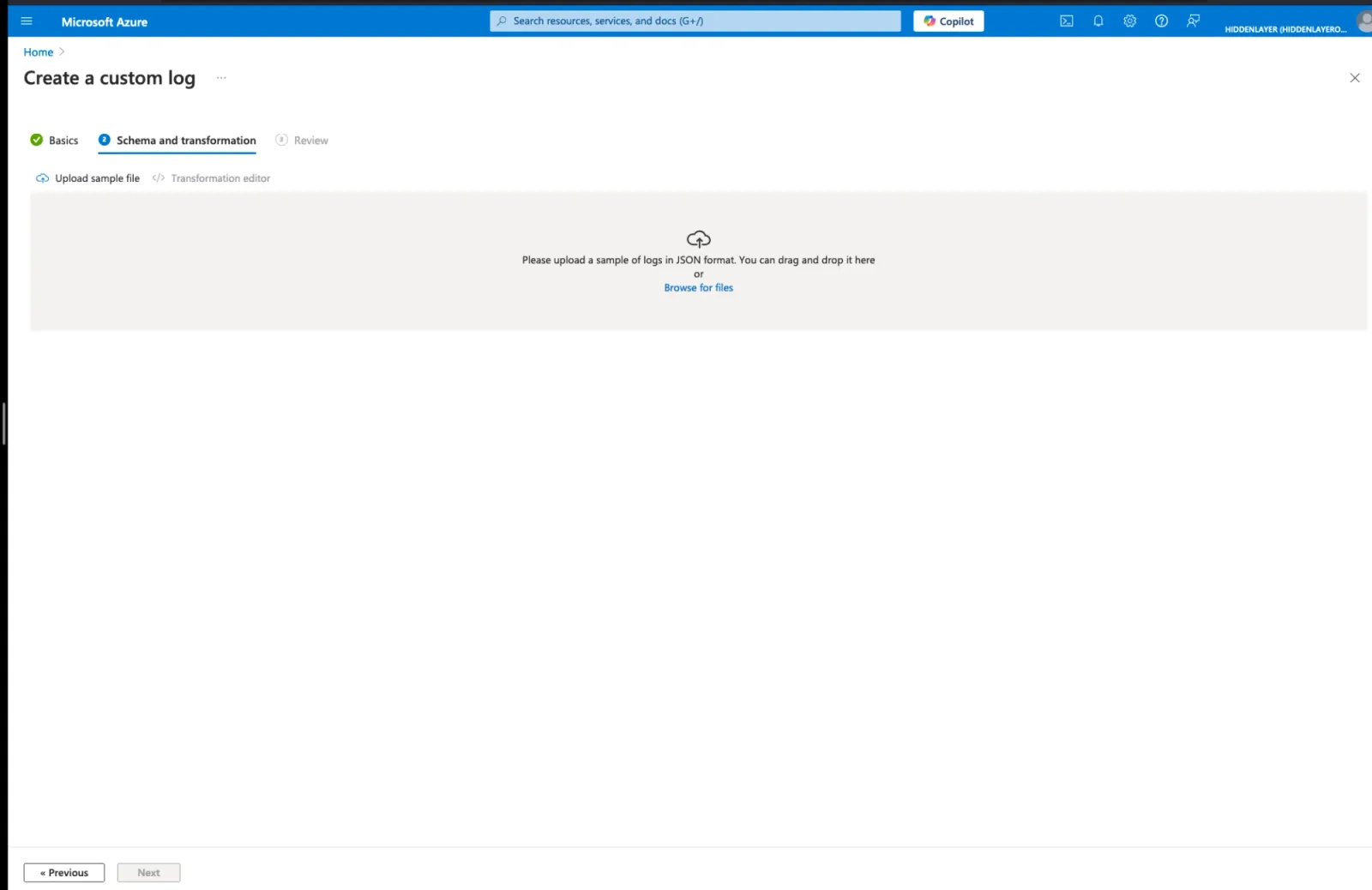

7. Upload the following JSON schema file:

{
  "TimeGenerated": "2024-10-21T00:01:03.123456Z",
  "conviction_id": "9f891a16-34e6-4e9a-aa5c-22369712e64a",
  "tenant_id": "80ad8fa2-c1f9-430a-a7b9-ad85a9386d45",
  "sensor_id": "8d009b0d-75dc-4287-b0d7-b653c51a5ae1",
  "requester_id": "a_requester_id",
  "source": "aidr",
  "detection_category": "A detection category",
  "attributable_event_id": "8a27bd3e-b7a1-421f-ba43-25f18e595050",
  "concluding_event_id": "2a4c645e-f08e-41a9-882d-8d22cb4b8e41",
  "conviction_timestamp": "2024-10-21T00:01:02.123456Z",
  "mitre": "{ \"Tactic\": { \"UID\": \"AML.TA0001\", \"Name\": \"ML Attack Staging\", \"SrcUrl\": \"https://atlas.mitre.org/tactics/AML.TA001\" }, \"Technique\": { \"UID\": \"AML.T0006\", \"Name\": \"Active Scanning\", \"SrcUrl\": \"https://atlas.mitre.org/tactics/AML.T0006\" } }",
  "severity": "high",
  "engine_name": "fuzzy_correlation"
}

8. Click Next → Create

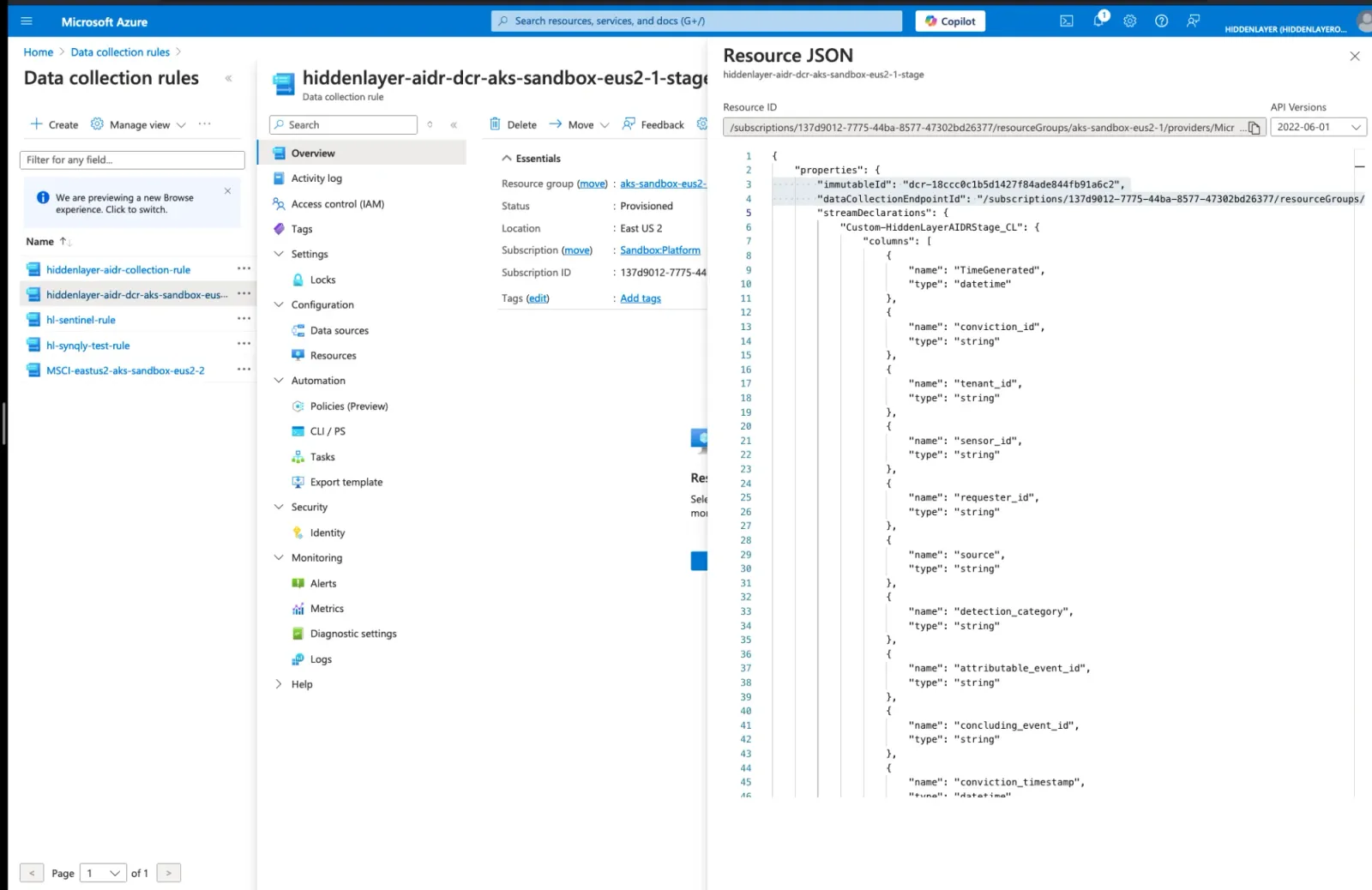

Step 5: Get Data Collection Rule Details

1. Navigate to Azure Portal → Monitor → Data Collection Rules

2. Find and select the data collection rule created in Step 4

3. Click JSON View

4. Copy the immutableId - It looks like:

   dcr-xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

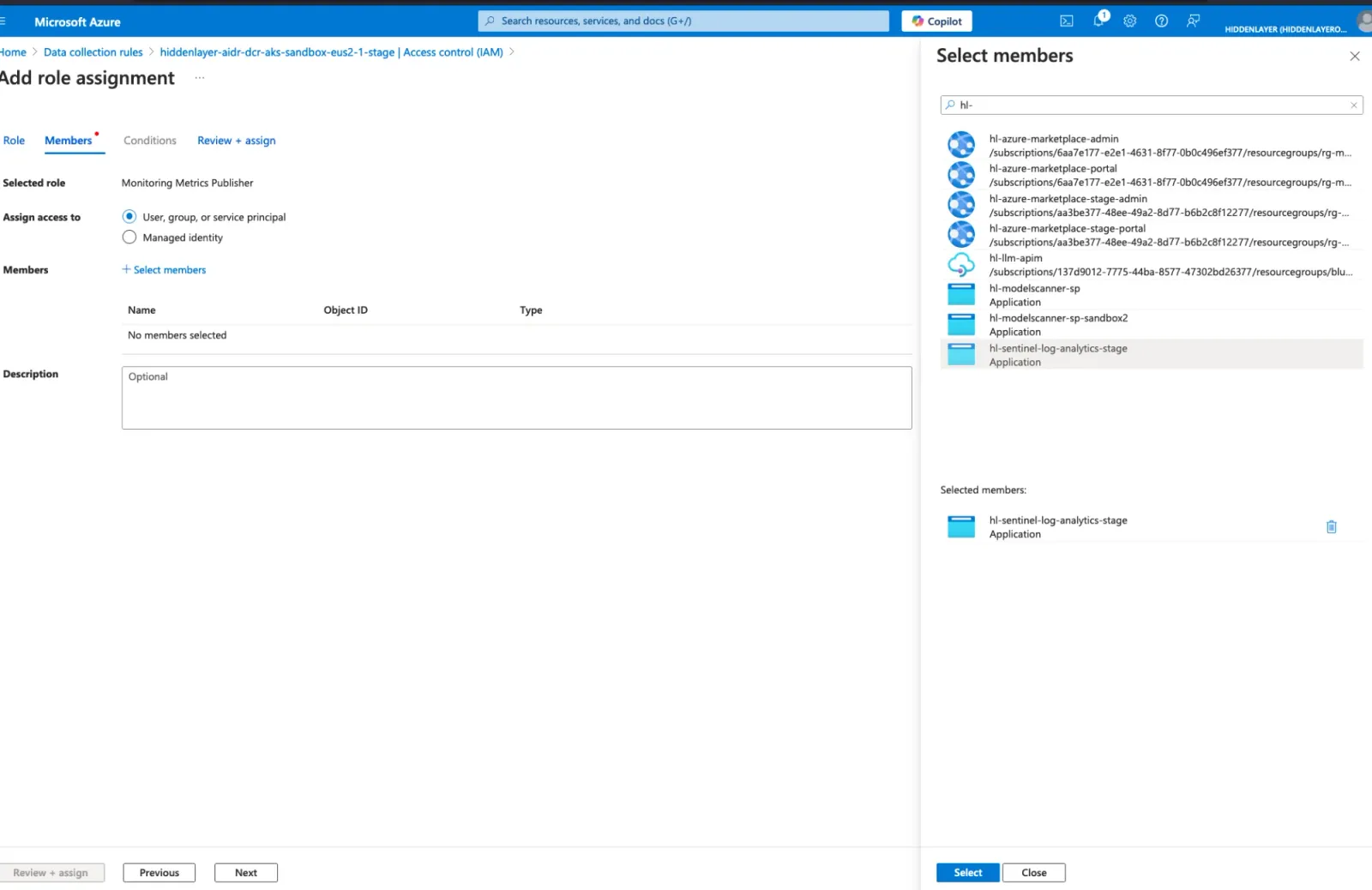

Step 6: Grant Permissions to App Registration

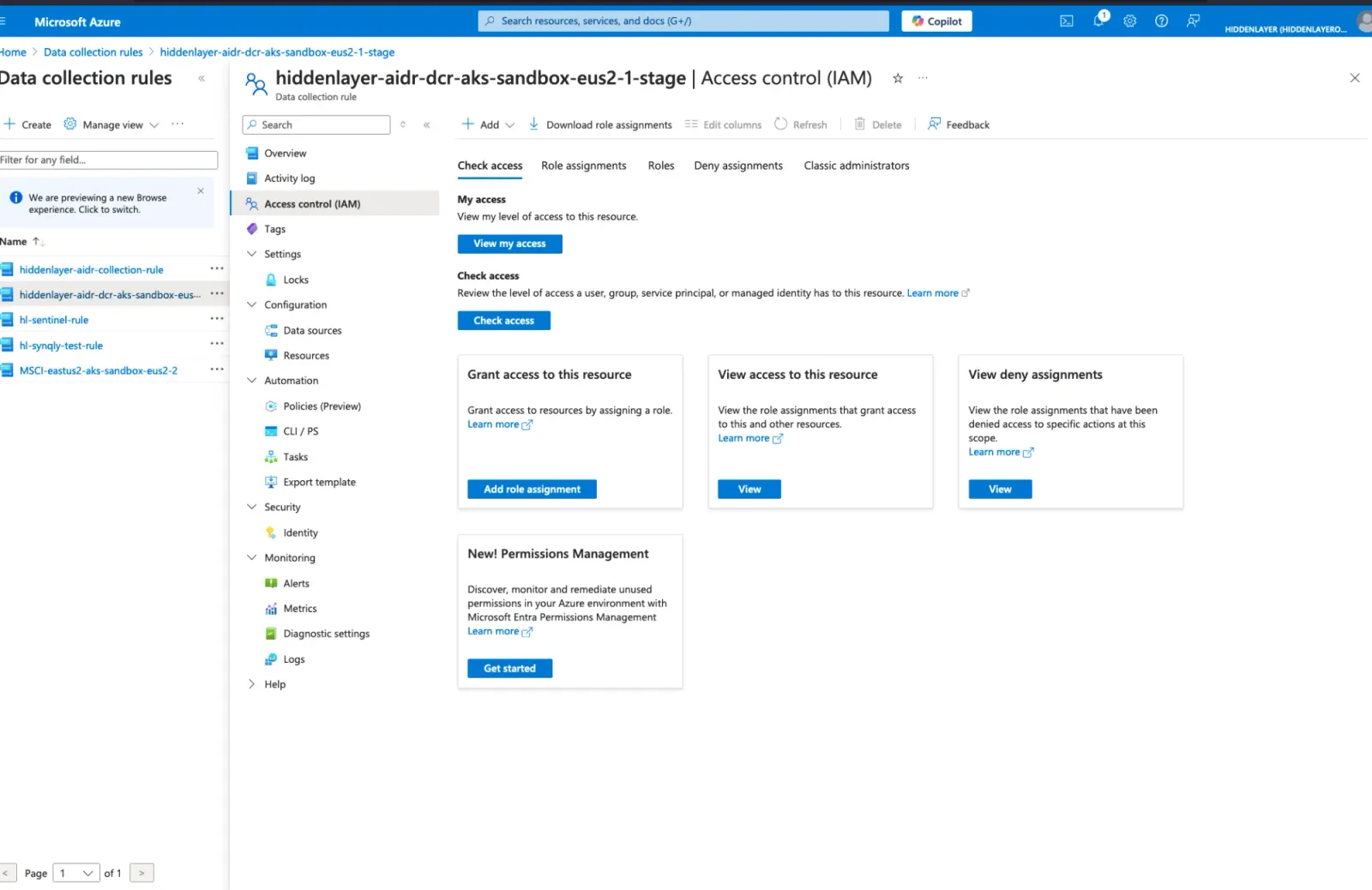

1. Stay on the Data Collection Rule page

2. Navigate to Access Control (IAM)



3. Click Add → Add role assignment

4. Select role: Monitoring Metrics Publisher

5. Click Next

6. For Assign access to, select User, group, or service principal

7. Click Select members

8. Search for your app registration name (from Step 1)



9. Select the application

10. Click Select → Review + assign → Review + assign

Step 7: Configure HiddenLayer Console

1. Log in to HiddenLayer Console

2. Navigate to Admin → Integrations

3. Find Azure Sentinel and click Configure Integration (three dots menu)

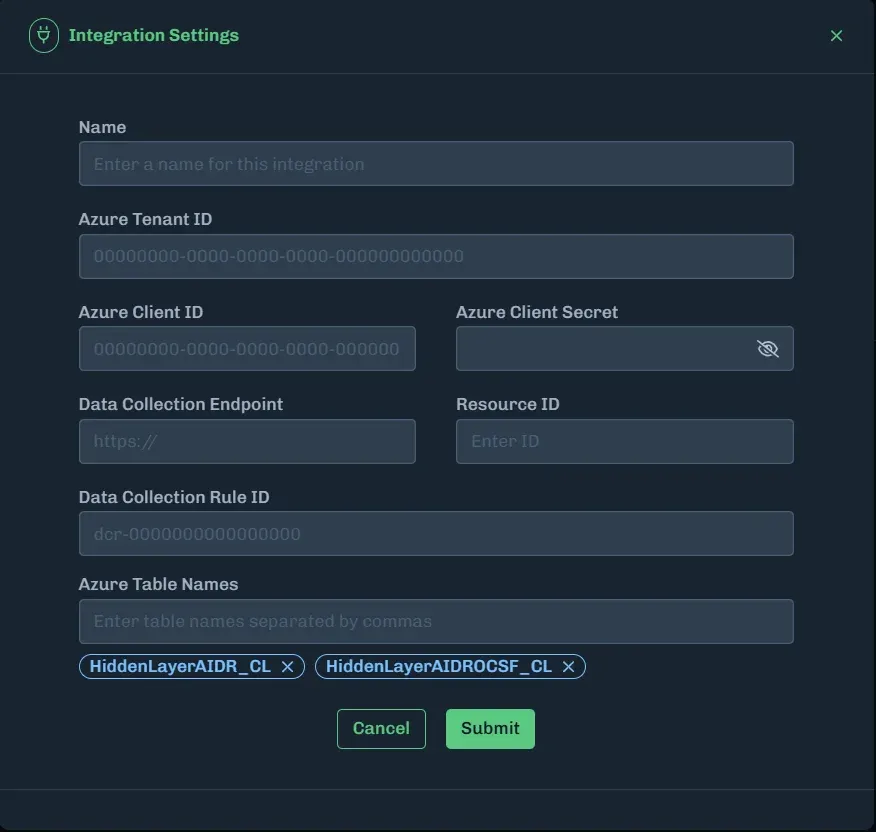

4. Enter the following values:

   Field	Value	Notes
   Name	azure-sentinel-integration	Any descriptive name
   Azure Tenant ID	<tenant-id>	From Step 1
   Azure Client ID	<client-id>	From Step 1
   Azure Client Secret	<client-secret-value>	From Step 2 (the secret value, not the secret ID)
   Data Collection Endpoint	https://<endpoint>.<region>.ingest.monitor.azure.com	From Step 3 (logsIngestion URL)
   Resource ID	/subscriptions/<sub>/resourceGroups/<rg>/providers/Microsoft.Insights/dataCollectionEndpoints/<name>	From Step 3 (dataCollectionEndpointId)
   Data Collection Rule ID	dcr-xxxxxxxx...	From Step 5 (immutableId)
   Azure Table Names	Custom-HiddenLayerAIDRStage_CL	The stream name with “Custom-” prefix and “_CL” suffix

5. Click Submit

Configuration Summary

Key Configuration Mapping

What you create in Azure Portal:

• Table name: HiddenLayerAIDRStage (no suffix)

What Azure automatically creates:

• Log Analytics table: HiddenLayerAIDRStage_CL (adds _CL suffix)
• DCR stream: Custom-HiddenLayerAIDRStage_CL (adds Custom- prefix and _CL suffix)

What you configure in HiddenLayer:

• Table name: Custom-HiddenLayerAIDRStage_CL (the full stream name)

Critical Field Clarifications

Verification (Wait 5-10 minutes after configuration)

Step 1: Create an AI Runtime Security detection

1. In HiddenLayer Console, navigate to LLM Sandbox
2. Select OWASP Scenarios -> LLM01: Prompt Injection
3. Turn on Block Prompt Injection in the Policy Settings
4. Send the prompt
5. You should see a message saying the prompt was blocked

Step 2: Check Azure for Errors

Run this query in Log Analytics:

DCRLogErrors
| where TimeGenerated > ago(30m)
| where _ResourceId contains "<your-dcr-name>"
| order by TimeGenerated desc

Expected result: No errors

If errors exist: See Troubleshooting section below

Step 3: Verify Data Ingestion

Run this query in Log Analytics:

HiddenLayerAIDRStage_CL
| where TimeGenerated > ago(1h)
| order by TimeGenerated desc
| take 10

Expected result: Conviction data appears in the table

Testing the Integration

If you want to manually test the Azure configuration before HiddenLayer sends data, use this Python script:

Test Script

Save as test_integration.py:

#!/usr/bin/env python3
import datetime
import json
from azure.identity import ClientSecretCredential
from azure.monitor.ingestion import LogsIngestionClient
# Configuration - UPDATE THESE VALUES
tenant_id = "YOUR_TENANT_ID"
client_id = "YOUR_CLIENT_ID"
client_secret = "YOUR_CLIENT_SECRET"
dce_endpoint = "https://YOUR_DCE_ENDPOINT.eastus2-1.ingest.monitor.azure.com"
dcr_immutable_id = "dcr-YOUR_IMMUTABLE_ID"
stream_name = "Custom-HiddenLayerAIDRStage_CL"
# Sample conviction data
sample_log = [{
    "TimeGenerated": datetime.datetime.utcnow().isoformat() + "Z",
    "conviction_id": "test-" + datetime.datetime.utcnow().strftime("%Y%m%d%H%M%S"),
    "tenant_id": "test-tenant",
    "sensor_id": "test-sensor",
    "requester_id": "test-requester",
    "source": "aidr",
    "detection_category": "Test Detection",
    "attributable_event_id": "test-attr",
    "concluding_event_id": "test-concl",
    "conviction_timestamp": datetime.datetime.utcnow().isoformat() + "Z",
    "mitre": json.dumps({"Tactic": {"UID": "AML.TA0001", "Name": "Test"}}),
    "severity": "high",
    "engine_name": "test_engine"
}]
print(f"Testing Azure Sentinel integration...")
print(f"Stream: {stream_name}")
# Authenticate
credential = ClientSecretCredential(tenant_id, client_id, client_secret)
client = LogsIngestionClient(endpoint=dce_endpoint, credential=credential, logging_enable=True)
try:
    response = client.upload(
        rule_id=dcr_immutable_id,
        stream_name=stream_name,
        logs=sample_log
    )
    print("✅ Test data sent successfully!")
    print(f"\nWait 5-10 minutes, then run this query in Log Analytics:")
    print(f"HiddenLayerAIDRStage_CL | where conviction_id == '{sample_log[0]['conviction_id']}'")
except Exception as e:
    print(f"❌ Error: {e}")

Install dependencies:

pip install azure-monitor-ingestion azure-identity

Run test:

python3 test_integration.py

Troubleshooting

Issue 1: Stream Not Configured Error

Error in DCRLogErrors:

The stream HiddenLayerAIDRStage_CL was not configured in the data collection rule

Cause: Incorrect table name in HiddenLayer Console

Solution:

✅ Correct configuration:

• Azure Portal table name: HiddenLayerAIDRStage
• HiddenLayer Console table name: Custom-HiddenLayerAIDRStage_CL

❌ Incorrect configurations:

• HiddenLayerAIDRStage_CL (missing “Custom-” prefix)
• HiddenLayerAIDRStage (missing both prefix and suffix)
• HiddenLayerAIDRStage_CL_CL (double suffix - table created incorrectly)

Issue 2: Authentication Failures

Error: No data in table

Possible causes:

1. Incorrect Client ID or Client Secret
2. Expired Client Secret
3. Missing role assignment

Solutions:

Verify credentials:

az login --service-principal \
  -u <CLIENT_ID> \
  -p <CLIENT_SECRET> \
  --tenant <TENANT_ID>

Check role assignment:

1. Go to Data Collection Rule → Access Control (IAM)
2. Verify app has “Monitoring Metrics Publisher” role
3. If missing, add the role (see Step 6)

Regenerate secret:

1. Go to App Registration → Certificates & secrets
2. Create new client secret
3. Update HiddenLayer configuration immediately

Issue 3: No Data Appearing

Symptom: No errors in DCRLogErrors, but no data in table

Possible causes:

1. No convictions being generated
2. Integration not properly activated
3. Timing delay

Solutions:

Check for detections:

• HiddenLayer Console → AI Runtime Security → Detections
• Look for detections in the last 24 hours

Trigger test detection:

• Follow the steps in Testing the Integration

Diagnostic Queries

Check for Integration Errors

DCRLogErrors
| where TimeGenerated > ago(1h)
| where _ResourceId contains "<dcr-name>"
| summarize Count = count() by Message
| order by Count desc

Check Data Ingestion Rate

HiddenLayerAIDRStage_CL
| where TimeGenerated > ago(24h)
| summarize ConvictionsPerHour = count() by bin(TimeGenerated, 1h)
| render timechart

Check Conviction Severity Distribution

HiddenLayerAIDRStage_CL
| where TimeGenerated > ago(24h)
| summarize count() by severity
| render piechart

Find Recent High Severity Convictions

HiddenLayerAIDRStage_CL
| where TimeGenerated > ago(24h)
| where severity == "high" or severity == "critical"
| project TimeGenerated, conviction_id, detection_category, sensor_id
| order by TimeGenerated desc
